Energy

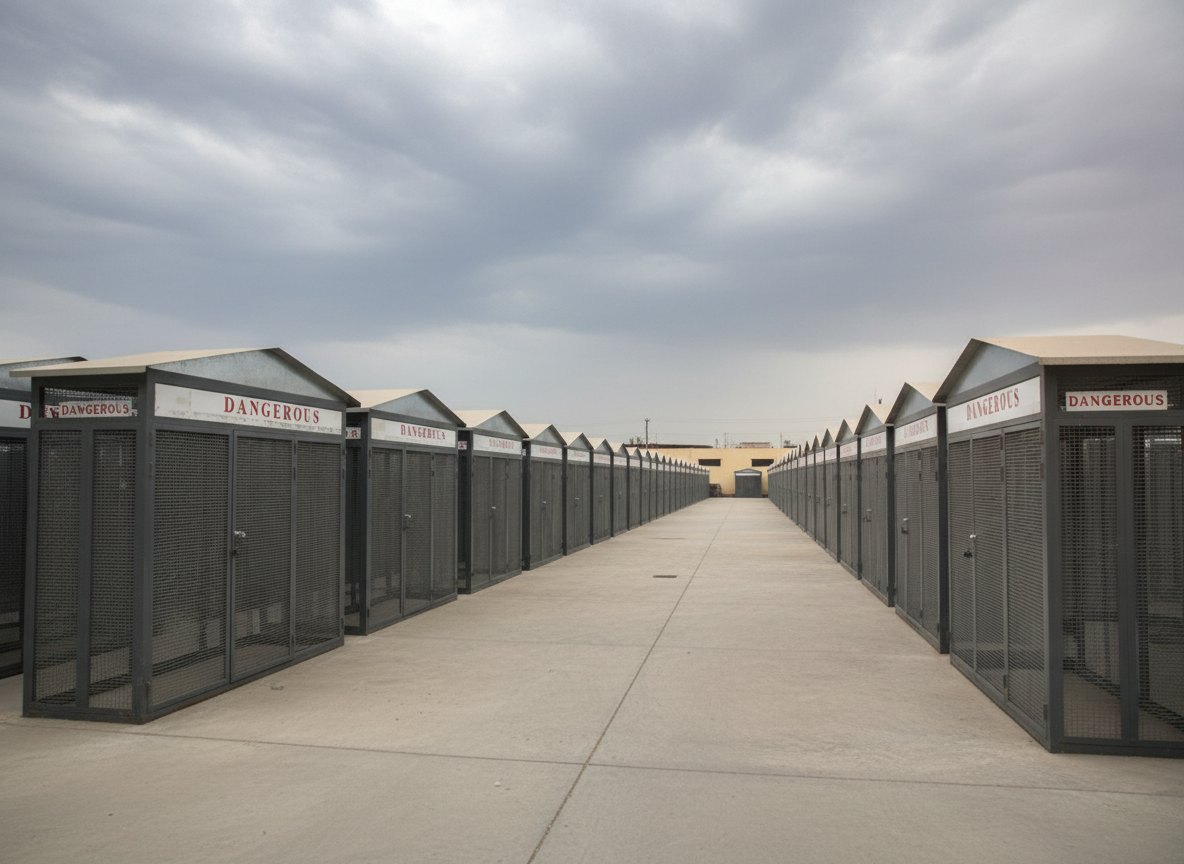

ZYP Energy. ZYP Energy Battery Booths.
Weather-sealed battery booths engineered for telecom and energy back-up sites, with shutter systems, thermal ventilation and full internal battery-rack integration. 40+ booths delivered nationwide to ZYP Energy sites.
Programme scale
40+ booths delivered nationwide
Timeline
3 weeks per booth
Active since
2023 – 2026 (ongoing)
The challenge
What made this hard.
- Protect lithium and lead-acid banks from 55°C summer + coastal salt.
- Ventilate without compromising ingress protection.
- Ship flat-pack for remote sites, assemble in under a day.
- Repeatable finish across a large fleet.
The solution
How PES built it.
- Twin-wall insulated sheet-metal booth with roof shade cap.
- Thermostatically controlled forced-air vents with hooded intakes.
- Bolt-together kit with pre-mounted battery racks and cable trays.
- Marine-grade hot-dip zinc + powder-coat finish.
Outcomes
Numbers the customer measures us on.
40+
Booths delivered
Across four provinces, zero warranty callouts.
≤ 1 day
Site assembly
Bolt-together kit shipped flat, up and sealed same day.
IP55
Ingress rating
Retained through storm and dust events.
Specifications
The technical envelope.
Booth Size
1.8 × 1.2 × 2.1 m (typical)
Shell
1.5 mm sheet + composite insulation
Ventilation
Thermostatic forced-air, hooded
Battery Racks
Pre-integrated, adjustable shelves
Ingress Protection
IP55
Finish
Hot-dip zinc + powder coat
Materials
Built from
Cold-rolled sheetComposite insulationStructural angle
Finishes
Finished with
Hot-dip galvanisingMarine-grade powder coat
Process
From drawing to delivery.
- 01
Site survey and thermal load calculation
- 02
Laser-cut flat-pack kit production
- 03
Ventilation and rack integration
- 04
Galvanising and powder-coat finish
- 05
Flat-pack dispatch and site assembly
Machines used
The tools that built it
Capabilities engaged
Disciplines applied
"Their battery booths for our EV and telecom sites are ruggedised, weather-sealed and priced honestly. We keep coming back."
Bilal Hussain · COO, Energy Systems Company
