Defense

Pakistan Army. Communication Shelters.

Rugged, camouflaged communication shelters mounted on military-grade truck chassis and trailers. Engineered for signals operations in the harshest terrain — from high-altitude posts in the north to desert forward bases in the south.

Programme scale
40+ shelters delivered
Timeline
8 – 12 weeks per unit
Active since
2019 – 2026 (ongoing)
The challenge

What made this hard.

  • Deployable command post that survives -20°C to +55°C.
  • EMI/RFI-hardened envelope for classified signals equipment.
  • Weight budget compatible with existing military chassis.
  • Repeatable production across multiple batches without drift.
The solution

How PES built it.

  • Bolt-together sheet-metal skeleton laser-cut from a single master DXF.
  • Insulated composite panels with copper-clad RFI-shielded interior.
  • Independent HVAC, lighting and power distribution modules.
  • Camouflage powder-coat finish per client colour spec.
  • Turnkey install: chassis mating, sealing, commissioning on-site.
Outcomes

Numbers the customer measures us on.

40+
Units delivered

Across three programme batches, zero field failures.

0
Field rework tickets

First-off approval by the end user on every batch.

21
Days average build

From cut-file to sealed shelter, ready to mount.

Specifications

The technical envelope.

Envelope Size
3.6 × 2.2 × 2.1 m (typical)
Empty Weight
~1,600 kg
Wall Construction
Insulated composite + RFI liner
Ingress Protection
IP54 sealed
Operating Range
−20°C to +55°C
Chassis
Military 4×4 / 6×6
Finish
Camouflage powder coat + hot-dip zinc
Certification
ISO 9001:2015 build
Materials

Built from

Mild steel skeletonAluminium skinsComposite insulationCopper RFI liner
Finishes

Finished with

Hot-dip galvanisingCamouflage powder coatRFI copper plating

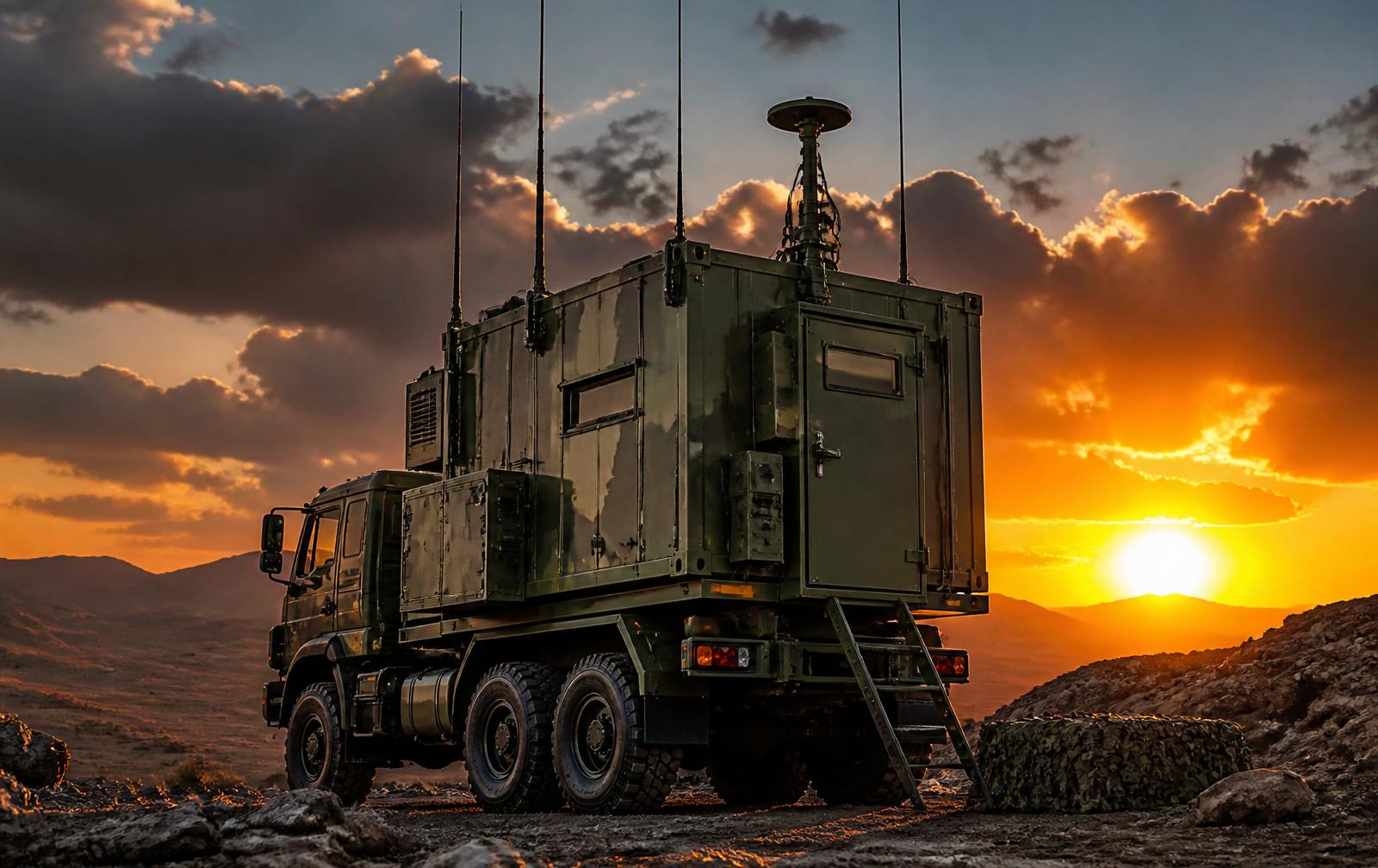

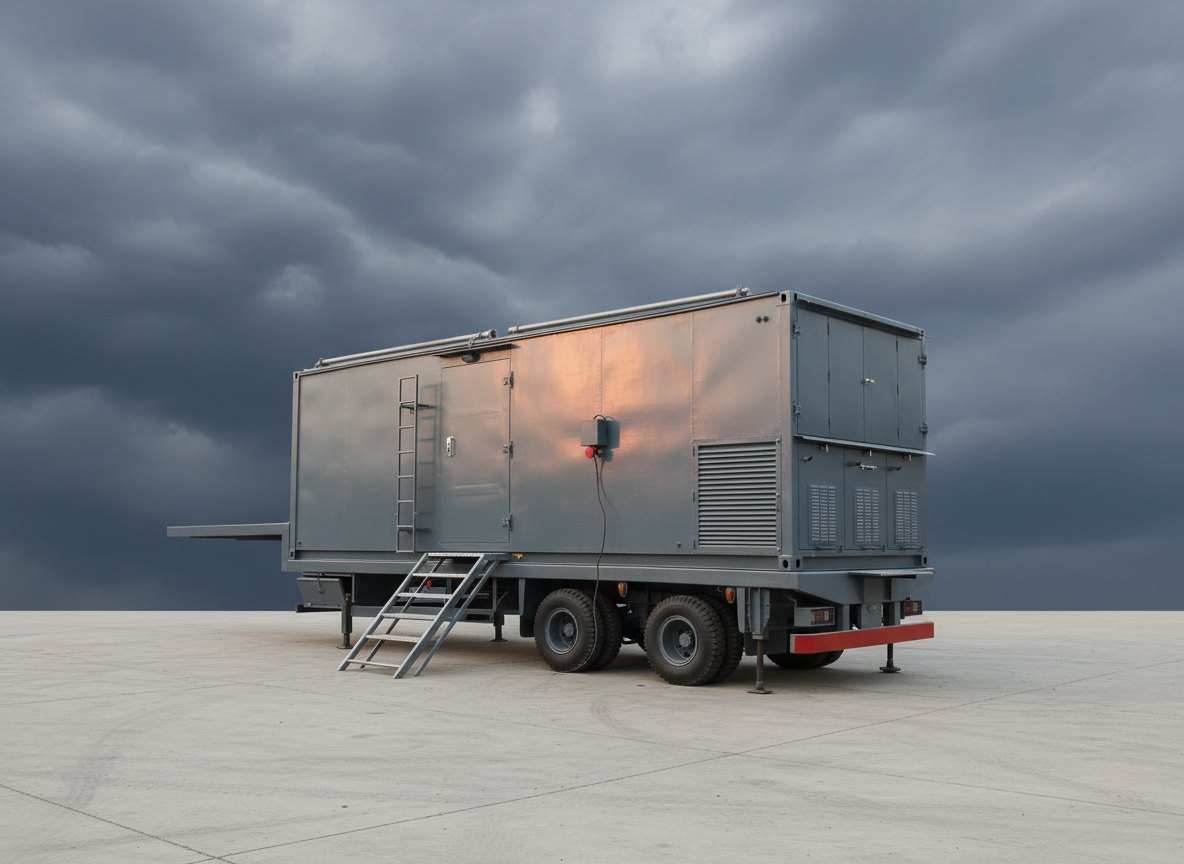

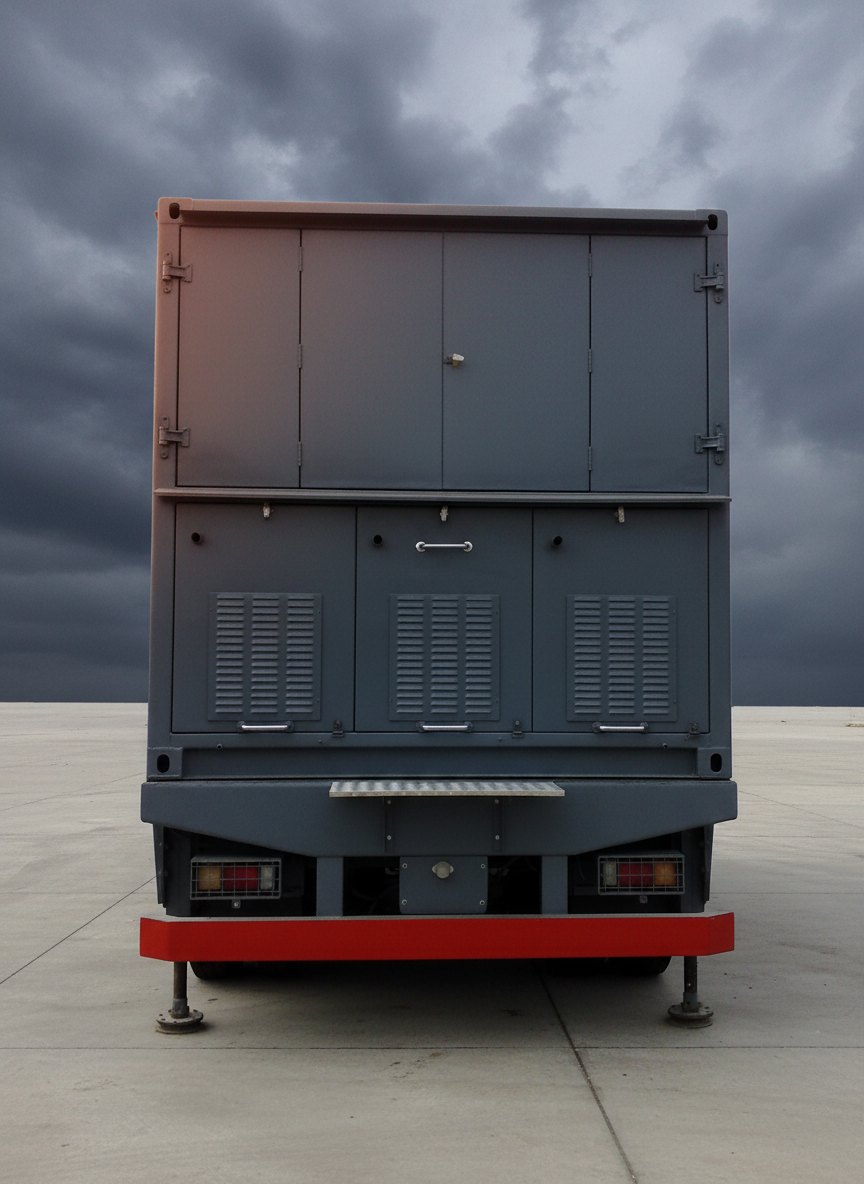

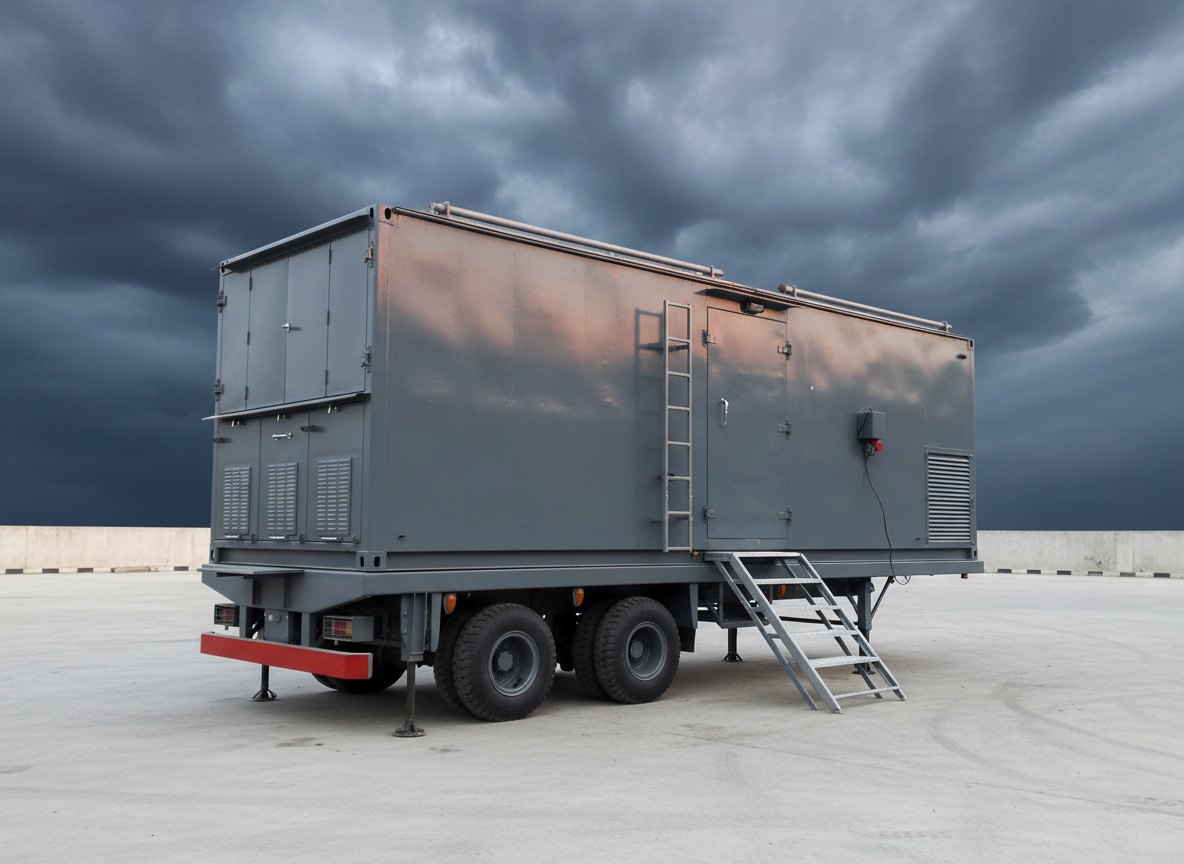

Gallery

From the production floor.

Process

From drawing to delivery.

  1. 01

    Client requirements review and site survey

  2. 02

    Full CAD model + manufacturing drawings

  3. 03

    Laser-cut skeleton and skin nesting

  4. 04

    Bend, weld and shell assembly

  5. 05

    Interior fit-out (RFI liner, wiring, HVAC)

  6. 06

    Chassis mounting, sealing and commissioning

"PES delivered our communication shelters on schedule and to a specification tolerance we rarely see from local vendors. Their laser and welding work is world-class."
Brig. (R) Asif Mahmood · Procurement Director, Defense Sector
